FILL-BY-WEIGHT AUGER Filling Machines
Kev Taw Qhia:

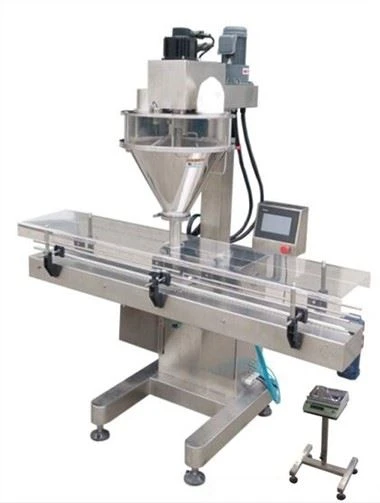

Qhov no yog Servo Net Weigh auger muab tub lim nrog Conveyor, nws muaj qhov hnyav ntawm tes nyob hauv qab lub taub ntim rau qhov zoo tshaj qhov hnyav tswj. Precise container tuav xyuas kom meej tias lub thawv raug cais tawm ntawm lub cev hnyav thaum lub voj voog puv.
- Automatic Thawv tuav
- Tshuav rauFill-By-Weight
Optimum sau raug tswj
Technical Parameters:
Qauv | DH-Q1-DSJ (DCS-2B-15) |
Tswj System | PLC & HMI Tswj kev koom ua ke nrog Servo Tsav system / Sau Los ntawm qhov hnyav |
Hopper Loj | 56L |
Sau Qhov hnyav | 100G-10KGS (Nrog cov cuab yeej auger sib txawv) |
Sau Ceev | 2-8Units/Min(Nyob ntawm lub hom phiaj hnyav, cov khoom siv ntom ntom pob thiab thawv ntim daim id) |
Sau Qhov tseeb | Tsawg dua lossis sib npaug li 1kg, Tsawg dua lossis sib npaug ± 2g; Ntau dua lossis sib npaug li 1kg, Tsawg dua lossis sib npaug ±0.2 feem pua |
Hu rau qhov chaw | Siab Stainless Hlau Kev Tsim Kho thiab SUS304 rau Cov Khoom Sib Txuas |
Daim ntawv qhia nco | 10 Khoom Daim Ntawv Qhia Nco |
Fais fab mov | 3P AC 208-415V 50/60HZ |
Huab cua | 6 kg/cm², 0.05m³/min |
Tag Nrho Lub Zog | 3.2 KW TSI |
Qhov hnyav tag nrho | 450 KGS |
Tshuab Loj | 3000 × 970 × 2300 hli |
Cov txheej txheem ua haujlwm: teeb ntim qhov hnyav → thawv nres ntawm qhov chaw nres tsheb → lub thawv nqa → ntim ceev- bulk fillingraws li lub thawv descends → luj xyuas → qeeb sausab saum toj→ hnyav nce mus txog → thawv rov qab mus rau qhov chaw nres tsheb → thawv txav mus rau qhov chaw nres tsheb tom ntej. | |
Cov lus nug nquag nug:
Q1: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nyob hauv shanghai Tuam Tshoj nrog 20 xyoo kev tsim khoom.
Q2: Lub tshuab twg koj tuaj yeem ua tau?
A: Auger muab tub lim, ntsia hlau thiab lub tshuab nqus tsev feeder, Ribbon thiab paddle tov khoom, Vertical daim ntawv sau thiab foob hmoov ntim tshuab, Ua tiav Powder bottling / canning Ntau lawm kab thiab lwm yam.
Q3: Kuv puas tuaj yeem tuaj xyuas koj lub Hoobkas thiab xa peb pab neeg rau kev cob qhia ua ntej xa khoom xa tuaj?
A: Yog, paub meej! Txais tos tuaj xyuas peb thiab tau txais kev cob qhia lossis ua FAT!
Q4: Koj qhov warranty thiab kev pab cuam tom qab muag yog dab tsi?
A: Ib xyoos lav tiv thaiv hnub xa khoom, peb tus kws tshaj lij tuaj yeem nyob ntawm koj qhov chaw rau kev tshaj tawm thiab kev teeb tsa lossis ntawm whatsapp / skype / wechat los muab kev pabcuam chaw taws teeb.
Q5: Lub sijhawm them nyiaj yog dab tsi?
A: 30 feem pua T / T tso nyiaj thiab 70 feem pua T / T ua ntej xa lossis koj tuaj yeem tuaj xyuas cov tshuab ua ntej xa khoom tom qab them nyiaj kawg!
Q6: Lub sijhawm khoom xa tuaj ntev npaum li cas?
A: Ib lub tshuab txiav txim 20-40hnub, Cov kab ntau lawm xaj 60-90 hnub.
Q7: Yuav mus cuag koj li cas?
A: Los ntawm Xov Tooj & Wechat & Whatsapp 0086-186-2117-5508
Or By Email:international2@dahepack.com
Cim npe nrov: filling-by-weight auger filling tshuab, suav, manufacturers, lwm tus neeg, Hoobkas, nqe, kev muag khoom
