Tsis Siv Neeg Lub raj mis Filling & Capping Tshuab
Kev Taw Qhia:

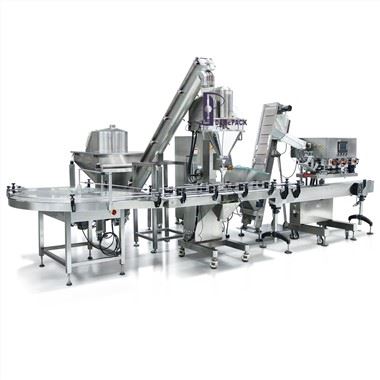

Tsis Siv Neeg Rotary Filler Filler Bottling Line suav nrog cov khoom siv teb, ntsia hlau feeder, capping tshuab, induction sealer, labeling tshuab thiab unscarmbling thiab sau cov rooj tsim los sau cov hmoov qhuav rau hauv cov thawv sib txawv thiab capped / labeled lawv zoo!
Nrhiav txoj kab tsis siv neeg lub raj mis rau koj lub Hoobkas?Hu rau US hnub no kom pom tias peb tuaj yeem muab tso ua kerau koj nyob rau hauv txoj kev ntawm ib tug ua tiav bottling system. Peb yuav muab cov kua filling,lub raj mis capping thiab labeling nrog rau kev thauj mus los ntawmcov cav tov muab koj ib tug tag nrho ua hauj lwm bottling system. Koj paub tseeb tias koj yuav pom qhov koj tab tom nrhiav hauv koj cov peev nyiaj.
Peb tuaj yeem tsim cov kab fillingmuaj cov hmoov muab tub lim, capping thiab labeling tshuab.Ua kom tiav nrog tag nrho cov conveyors, lub raj mis unscrambler tshuab, thiab lub rooj sib dhos
Nta:
- 1. Nrog Thawv indexing Star-Log. Yog li ntawd, lub tshuab nrog ib tug ntau dua positioning raug.
- 2. Nrog tag nrho cov xim kov npo nrog cov lus Askiv versions. PLC tswj qhov system. Kev ua haujlwm yooj yim thiab yooj yim.
- 3. Siv rau tag nrho cov thawv ntim tau zoo li lub raj mis, xws li: lub raj mis iav, hub yas, hlau tin poom, thiab lwm yam.
4. Tsis muaj Thawv Tsis Sau
5.Nrog inline checkweigher thiab rejector
- 6. Lub hopper cia yog split-hopper. Yog li, nws yog ib qho yooj yim los ntxuav, thiab yooj yim rau dosing auger cov cuab yeej hloov pauv.
7. Filling thiab agitation nrog txawv dirven lub cev muaj zog.
Kab Layout:
Technical Parameters:
Filling Tshuab Specifications:
Qauv | DH-Q2-100(DCS-2A-2) | DH-Q2-160(DCS-2B-2) |
Tswj System | PLC tswj-Servo Tsav Sau Los ntawm ntim nrog inline luj xyuas | |
HopperNtim | 25L | 50L |
Sau Ntau yam | 1-500g (Nrog cov cuab yeej auger sib txawv) | 10-5000g(Nrog cov cuab yeej auger sib txawv) |
Thawv Loj | D: 20-102; H: 15-150 | D: 30-130; H: 50-260 |
Sau Qhov tseeb | Tsawg dua lossis sib npaug li 100g, Tsawg dua lossis sib npaug rau ± 2 feem pua; 100 - 500g Tsawg dua lossis sib npaug ± 1 feem pua; Ntau tshaj los yog sib npaug li 500g Tsawg dua lossis sib npaug rau ±0.5 feem pua | |
Sau Ceev | 10-30Units/Min(Nyob ntawm lub hom phiaj hnyav, cov khoom siv ntom ntom pob thiab thawv lub qhov ncauj ID) | |
Hu rau qhov chaw | Siab Stainless Hlau Kev Tsim Kho thiab SUS304 rau Cov Khoom Sib Txuas | |
Daim ntawv qhia nco | 10 Khoom Daim Ntawv Qhia Nco | |
Fais fab mov | 3P AC 208-415V 50/60HZ | |
Huab cua | 6 kg/cm², 0.05m³/min | 6 kg/cm², 0.05m³/min |
Tag Nrho Lub Zog | 2.1 KW TSI | 2.6 KW TSI |
Qhov hnyav tag nrho | 250 KGS | 350 KGS |
Tshuab Loj | 1400 × 830 × 2100 hli | 1840 x 1070 x 2400 mm |
Cov txheej txheem ua haujlwm:setpuvqhov hnyav thiab kev ua yuam kev kam rau ua → lub raj mis los → txeeb los ntawm lub rooj teb(Star log) →lub raj mis nqa me ntsis → auger sau→ luj xyuas → tshem tawm cov tsis tsim nyog(sab conveyor)→zoo puv lub raj mis ntws tawm (lub ntsiab conveyor) | ||
Capping Tshuab Specifications:
Capping Ceev | 30-40 fwj/feeb |
Lub raj mis txoj kab uas hla | 22-120mm (ua raws li qhov yuav tsum tau ua) |
Lub raj mis qhov siab | 60-280mm (tsim raws li qhov yuav tsum tau ua) |
Txoj kab uas hla | 50-90mm (tsim raws li qhov yuav tsum tau ua) |
Lub zog siv thiab siv | 1300W, 220v, 50-60HZ, ib theem |
Qhov ntev | 2000mm × 900mm × 1800mm (Length × Dav × Qhov siab) |
Qhov hnyav | 4 50kg |
Labeling Tshuab Specifications:
Specifications:
Labeling ceev | 30-40 fwj/feeb |
Lub raj mis txoj kab uas hla | Φ30-120 hli |
Daim ntawv loj | Max. qhov siab 180 mm (yuav tsum customized) |
Lub zog thiab kev siv | 0.3 KW, 220v, 1 Ph, 50-60HZ（Xaiv tau） |
Qhov ntev | 1600mm × 860 hli × 1400 hli ( L × W × H ) |
Qhov hnyav | 250 kgs |
Kev taw qhia ua haujlwm | Sab laug→Txoj cai (los yog Txoj Cai→Sab laug) |
Cov lus nug nquag nug:
Q1: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nyob hauv shanghai Tuam Tshoj nrog 20 xyoo kev tsim khoom.
Q2: Lub tshuab twg koj tuaj yeem ua tau?
A: Auger muab tub lim, ntsia hlau thiab lub tshuab nqus tsev feeder, Ribbon thiab paddle tov khoom, Vertical daim ntawv sau thiab foob hmoov ntim tshuab, Ua tiav Powder bottling / canning Ntau lawm kab thiab lwm yam.
Q3: Kuv puas tuaj yeem tuaj xyuas koj lub Hoobkas thiab xa peb pab neeg rau kev cob qhia ua ntej xa khoom xa tuaj?
A: Yog, paub meej! Txais tos tuaj xyuas peb thiab tau txais kev cob qhia lossis ua FAT!
Q4: Koj qhov kev lees paub thiab kev pab cuam tom qab muag yog dab tsi?
A: Ib xyoos lav tiv thaiv hnub xa khoom, peb tus kws tshaj lij tuaj yeem nyob ntawm koj qhov chaw rau kev tshaj tawm thiab kev teeb tsa lossis ntawm whatsapp / skype / wechat los muab kev pabcuam chaw taws teeb.
Q5: Lub sijhawm them nyiaj yog dab tsi?
A: 30 feem pua T / T tso nyiaj thiab 70 feem pua T / T ua ntej xa lossis koj tuaj yeem tuaj xyuas cov tshuab ua ntej xa khoom tom qab them nyiaj kawg!
Q6: Lub sijhawm khoom xa tuaj ntev npaum li cas?
A: Ib lub tshuab txiav txim 20-40hnub, Cov kab ntau lawm xaj 60-90 hnub.
Q7: Yuav ua li cas mus cuag koj?
A: Los ntawm Xov Tooj & Wechat & Whatsapp 0086-186-2117-5508
