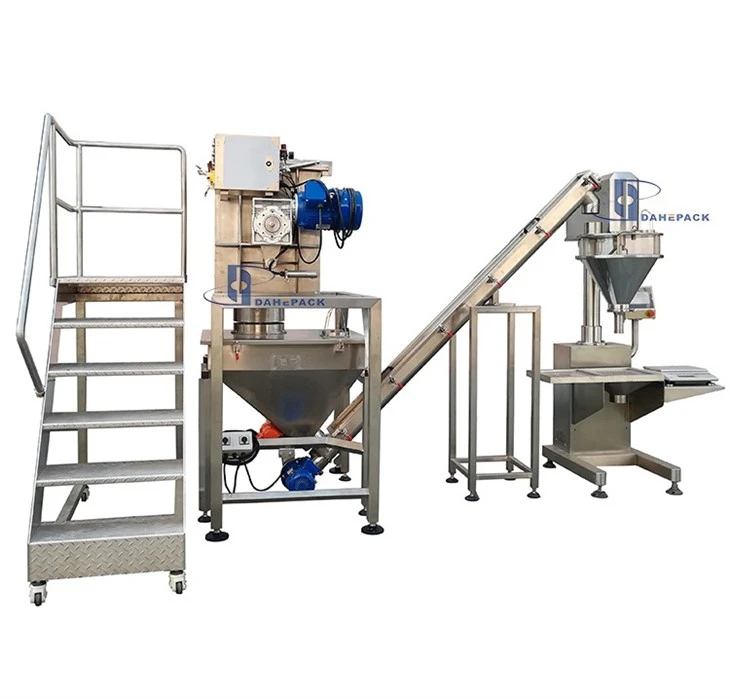

Shanghai Dahe Ntim Machinery Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm peb cov hmoov filling tshuab, auger fillers hauv Suav teb. Nrog kev paub ntau, peb zoo siab tos txais koj los yuav peb cov hmoov filling tshuab, auger fillers muag ntawm no los ntawm peb lub hoobkas. Cov khoom zoo thiab tus nqi tsim nyog muaj.



Nqe lus piav qhia:

Peb cov hmoov filling tshuab, auger fillers tuaj yeem ua tiav, ntim cov hmoov, granules hauv me me lossis ntau dua.





Kev Taw Qhia:

Semi- Tsis Siv Neeg Auger Filling Tshuab auger muab tub lim yog ntau yam tshuab filling zoo tagnrho rau cov uas tsis yog- dawb ntws, fluffy & nplaum hmoov xws li talcum hmoov, hniav hmoov, custard hmoov, tshuaj tua kab, cov txuj lom hauv av thiab lwm yam. Semi- Tsis siv neeg qhuav hmoov auger muab tub lim . Precisely tsim auger yog tshem cov khoom los ntawm funnel. Digital timer tswj yog sau kom muaj nuj nqis los ntawm electromagnetic clutch-brake unit. Sau kom muaj nuj nqis tuaj yeem hloov kho los ntawm digital timer los ntawm kev teeb tsa lub sijhawm thiab sau cov khoom ncaj qha rau hauv lub thawv los ntawm hauv qab ntawm funnel. Thawv los yog pouches yuav tsum muab tso rau manually nyob rau hauv funnel.



Auger Filler Technical Parameters:

Qauv	DH-B2-1L(DCS-1A-321)	DH-B2-10L(DCS-1B-321)
Tswj System	PLC & HMI Tswj kev koom ua ke nrog Servo Tsav system / Sau Los ntawm Volume
Hopper Volume	25L	50L
Sau Qhov hnyav	1-500g (Nrog cov cuab yeej sib txawv)	10-5000g (Nrog cov cuab yeej sib txawv)
FillAccuracy	Tsawg dua lossis sib npaug li 100g, Tsawg dua lossis sib npaug ± 2%; 100 - 500g Tsawg dua lossis sib npaug ± 1% ; Ntau dua lossis sib npaug li 500g Tsawg dua lossis sib npaug rau ± 0.5%
FillRate	10-30Unit / Min (Nyob ntawm lub hom phiaj qhov hnyav, cov khoom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntim,tus neeg teb xov tooj thawv manually tuav lub sij hawm noj)
Hu rau qhov chaw	Siab Stainless Hlau Kev Tsim Kho thiab SUS304 rau Cov Khoom Sib Txuas
Daim ntawv qhia nco	10 Khoom Daim Ntawv Qhia Nco
Fais fab mov	3PAC208-415V 50/60HZ
Tag Nrho Lub Zog	0.93 kwm	1.4 KW TSI
Qhov hnyav tag nrho	130 KGS	190 KGS
Tshuab Loj	800 × 790 × 1900 hli	1140 x 970 x 2050 mm
Cov txheej txheem kev ua haujlwm: teeb ntim qhov hnyav → Teem lub auger tig counts (sim txawv suav teev kom txog thaum tau txais lub hom phiaj hnyav) → nias ko taw pedal los pib lub filling.

Screw Conveyor Technical Parameters:

Qauv	GS-2S 2	GS-2S 3	GS-2S 5	GS-2S 7	GS-2S 8	GS-2S 12
LiftingCapacity	2m3/h	3m3/h	5 m3/h	7 m3/h	8 m3/h	12 m3/h
Txoj kab uas hla	φ102	φ114	φ141	φ159	Φ168	Φ219
TotalPower	0.61 kWm	0.81W	1.56 KW TSI	2.26 kWm	3.06 KW UA	4.06 kwm
Qhov hnyav tag nrho	100 KGS	130 KGS	170 KGS	200 KGS	220 KGS	270 KGS
Hopper Volume	100L	200L	200L	200L	200L	200L
Lifting Qhov siab	1800-2000mm raws li tus qauv, 500-5000mm tuaj yeem ua kev cai
Lifting Angle	45℃raws li tus qauv, 30-60℃tuaj yeem ua kev cai
Hopper Volume	100/200L raws li tus qauv, 50-2000L tuaj yeem ua kev cai
ProductContact Parts	Kev tsim kho stainless hlau tag nrho thiab SUS304 rau cov khoom sib cuag raws li tus qauv, SUS316 rau cov khoom tiv tauj tuaj yeem ua kev cai- ua
Conveying Screw	Tag nrho welded thiab zoo polished zaub mov qib hom raws li tus qauv, tack welded hom raws li kev xaiv
Fais fab mov	3P 208-415V 50/60HZ



Cov lus nug nquag nug:

Q1: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?

A: Peb yog lub Hoobkas nyob hauv shanghai Tuam Tshoj nrog 20 xyoo kev tsim khoom.

Q2: Lub tshuab twg koj tuaj yeem ua tau?

A: Auger muab tub lim, ntsia hlau thiab lub tshuab nqus tsev feeder, Ribbon thiab paddle tov khoom, Vertical daim ntawv sau thiab foob hmoov ntim tshuab, Ua tiav Powder bottling / canning Ntau lawm kab thiab lwm yam.

Q3: Kuv puas tuaj yeem tuaj xyuas koj lub Hoobkas thiab xa peb pab neeg rau kev cob qhia ua ntej xa khoom xa tuaj?

A: Yog, paub meej! Txais tos tuaj xyuas peb thiab tau txais kev cob qhia lossis ua FAT!

Q4: Koj qhov warranty thiab tom qab -muag kev pab yog dab tsi?

A: Ib xyoos lav tiv thaiv hnub xa khoom, peb tus kws tshaj lij tuaj yeem nyob ntawm koj qhov chaw rau kev tshaj tawm thiab kev teeb tsa lossis ntawm whatsapp / skype / wechat los muab kev txhawb nqa tej thaj chaw deb.

Q5: Lub sijhawm them nyiaj yog dab tsi?

A: 30% T / T tso nyiaj thiab 70% T / T ua ntej xa khoom lossis koj tuaj yeem tuaj xyuas cov tshuab ua ntej xa khoom tom qab them nyiaj kawg!

Q6: Lub sijhawm khoom xa tuaj ntev npaum li cas?

A: Ib lub tshuab xaj 20-40 hnub, Cov kab ntau lawm xaj 60-90 hnub.

Q7: Yuav ua li cas mus cuag koj?

A: Los ntawm Xov Tooj & Wechat & Whatsapp 0086-186-2117-5508

Los Ntawm Email: international2@dahepack.com

Cim npe nrov: peb cov hmoov filling tshuab, auger fillers, Tuam Tshoj peb cov hmoov filling tshuab, auger fillers manufacturers, lwm tus neeg, Hoobkas
